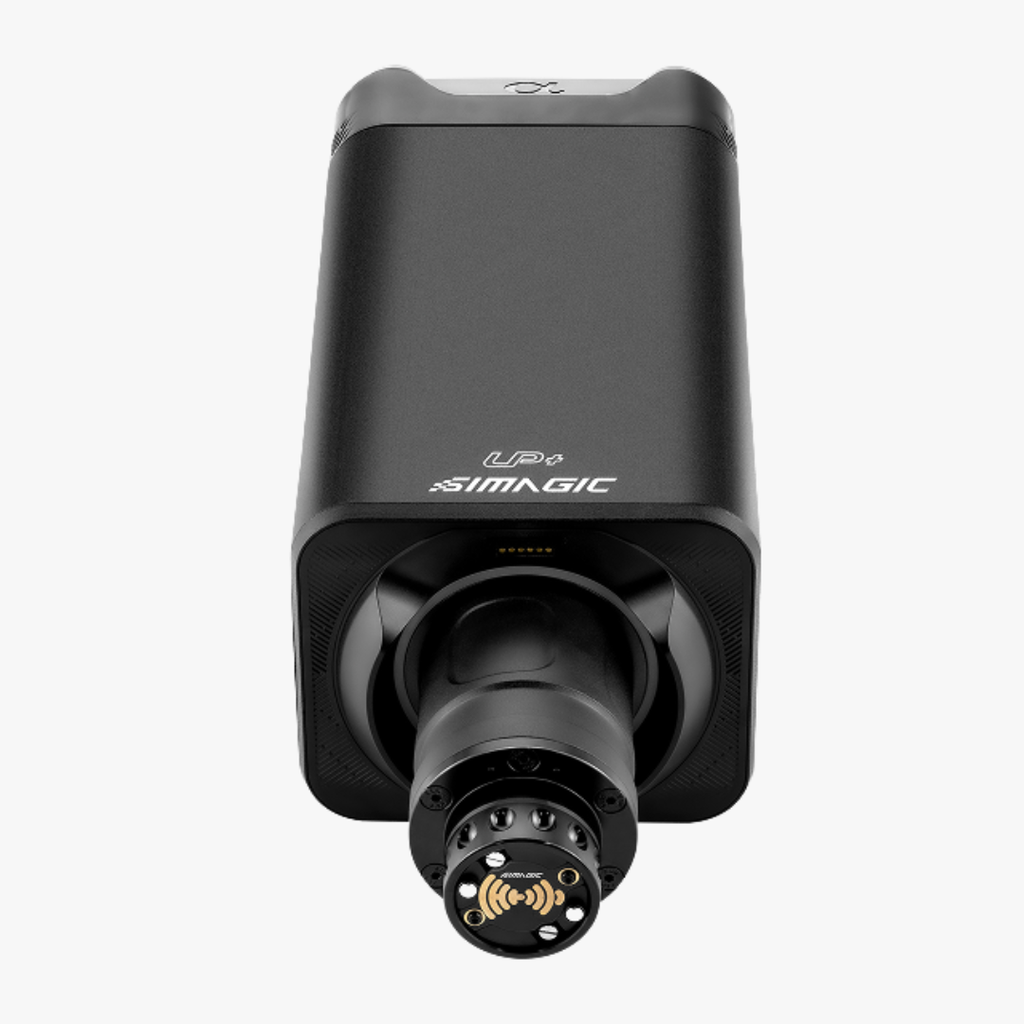

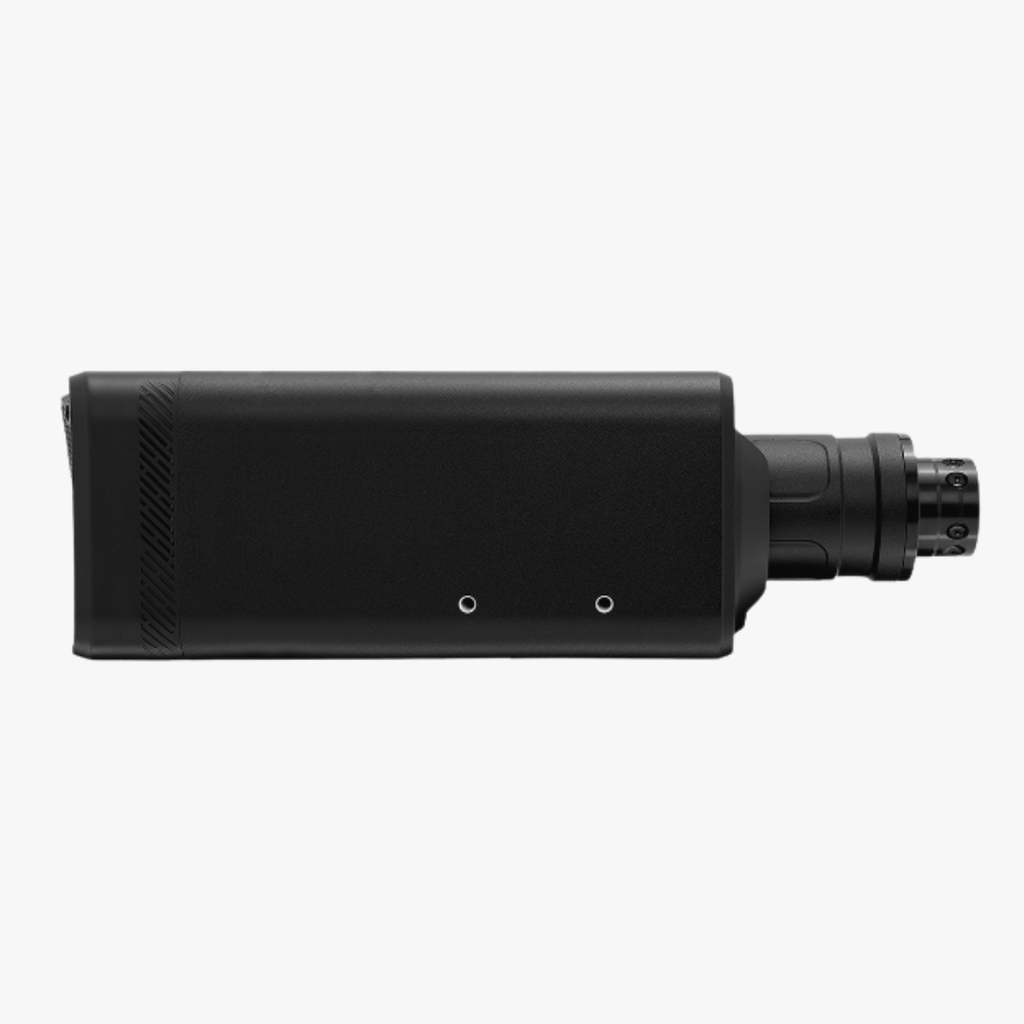

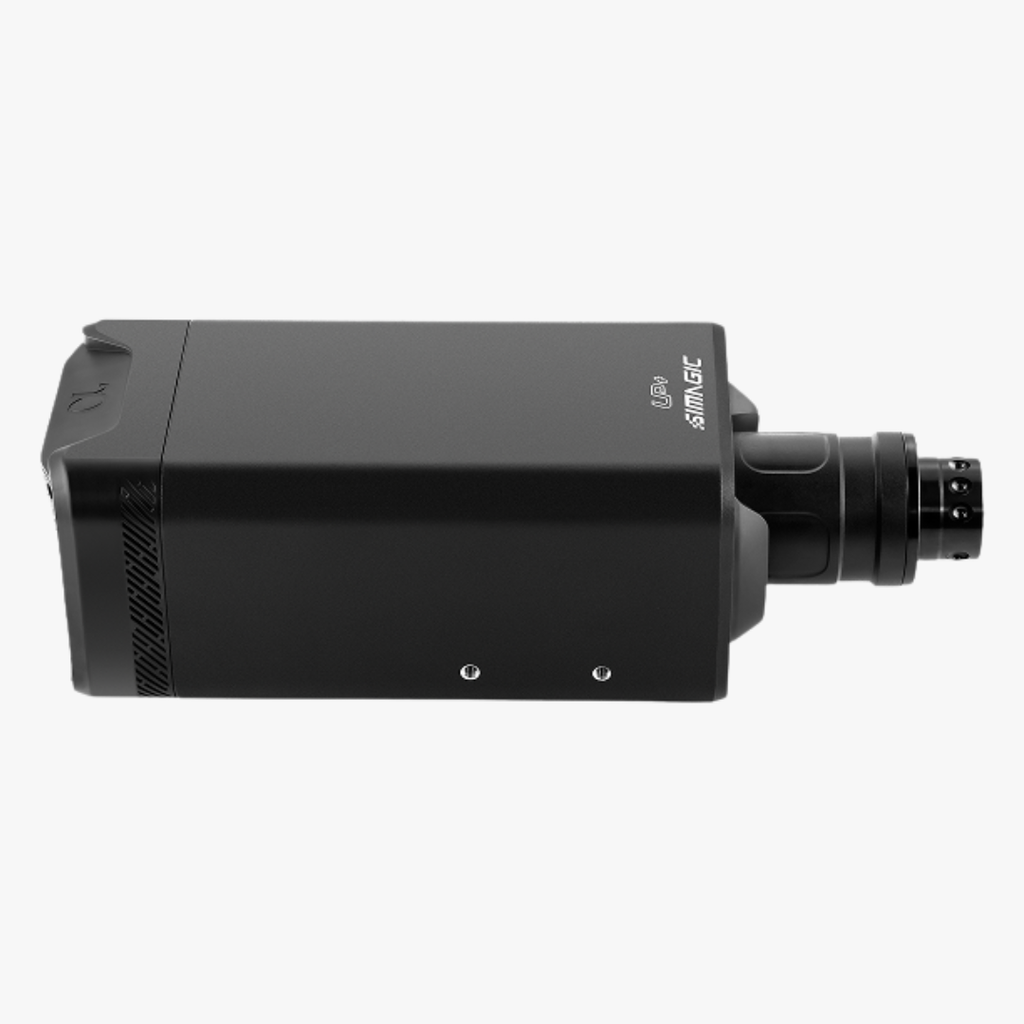

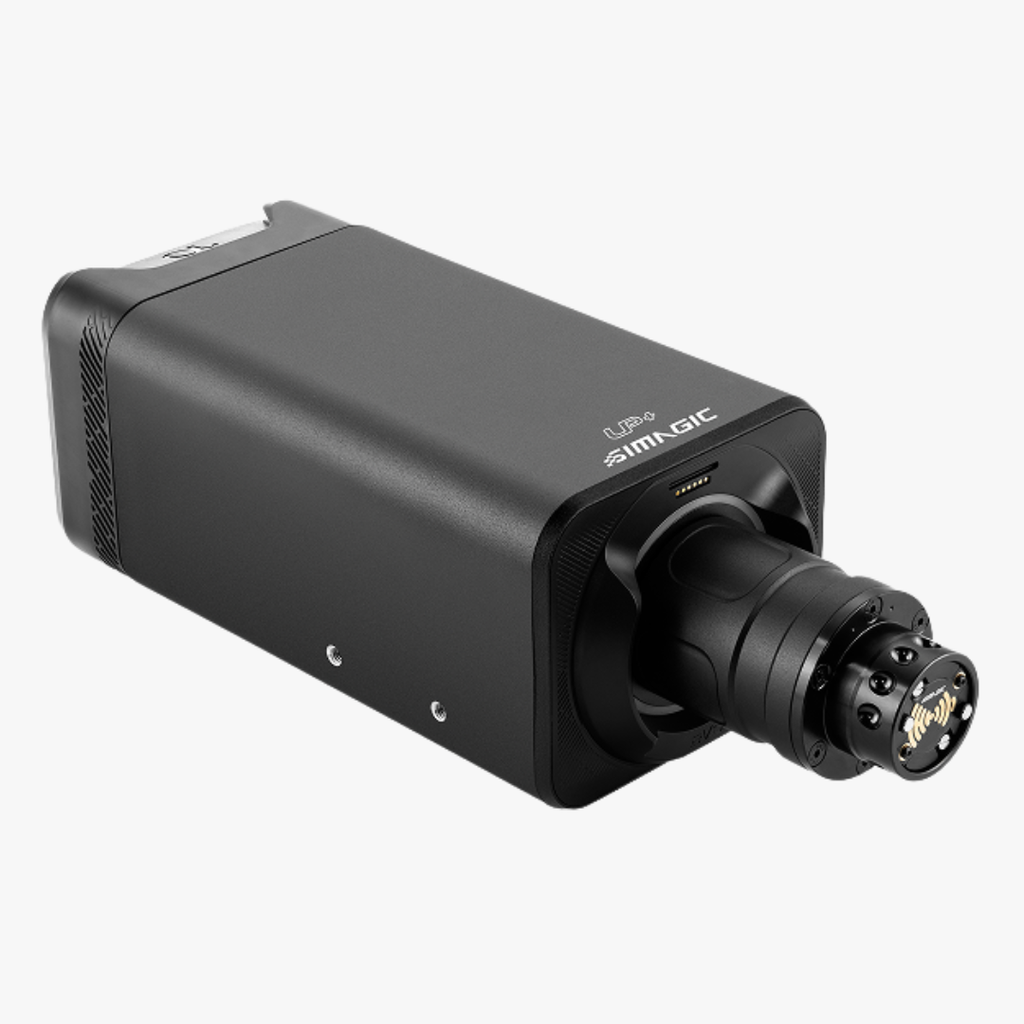

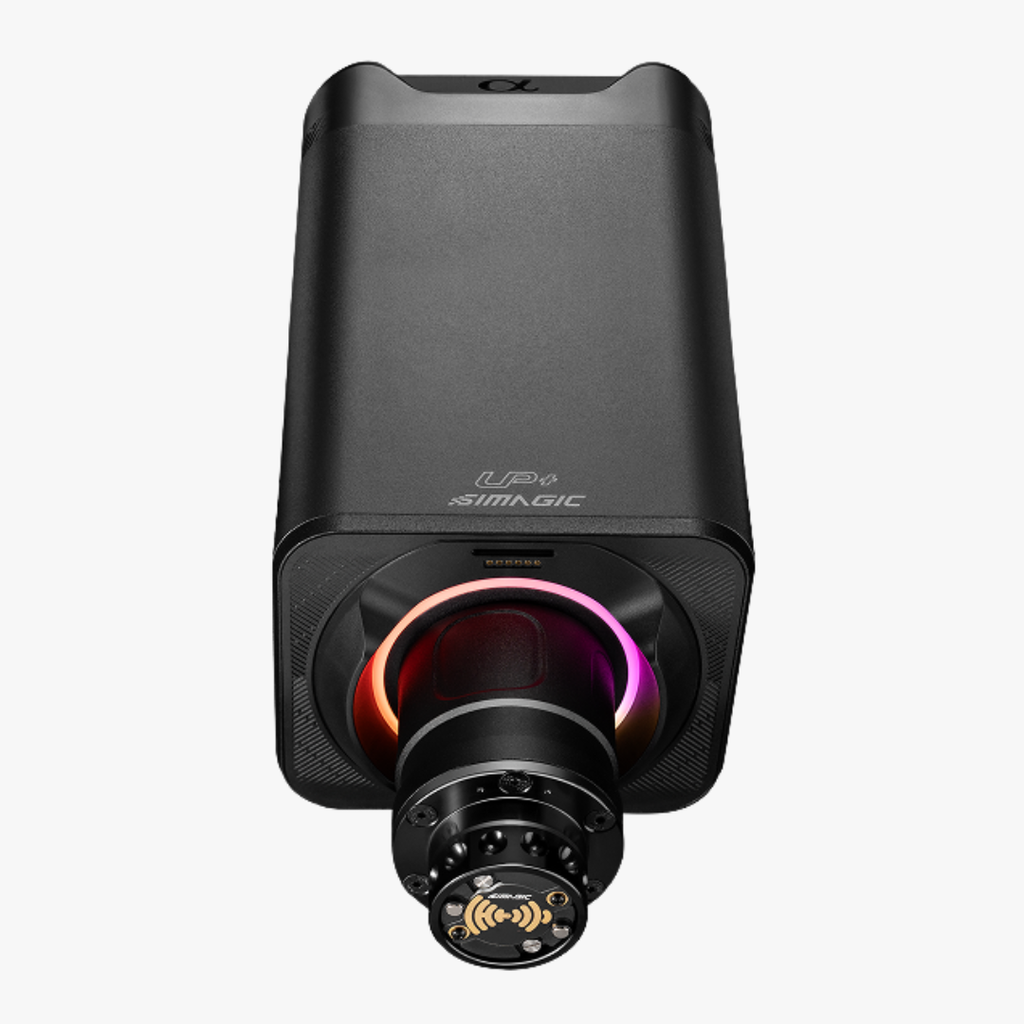

Simagic Alpha EVO Ultra Wheelbase 28Nm


Price:
Sale price €1.379,00

Tax included Shipping calculated at checkout

Description

Alpha EVO Ultra Wheelbase

Born for extremes, refined to push to the absolute limit.

28Nm Direct Drive Wheelbase – Built for Pros

Extreme Performance. Maximum Precision.

  • 28Nm Direct Drive Torque for professional-level performance
  • Ultra-Low Inertia Technology for lightning-fast response
  • Zero-Cogging Technology for perfectly smooth force feedback
  • 21-bit Encoder for ultra-precise input detection
  • Dynamic Force Domain Filter (DFDF) Algorithm for enhanced feedback fidelity

Open Ecosystem

Designed for maximum compatibility with third-party steering wheels and sim racing hardware.

Advanced Connectivity and Expansion

  • CAN, CAN FD and USB connectivity
  • 11 expansion ports for extended accessories
  • Instant dash connection with snap-on design
  • Wireless connectivity via Bluetooth 2.4 GHz

Reliable and Powerful. Ready for Extreme Racing.

  • Advanced Hyper Cool active cooling system for sustained peak torque
  • Ultra-fast 20KHz control frequency
  • High-performance 180MHz processor
  • Next-Gen SimPro Manager software with halo lighting customization and one-click profile sharing

Technical Details

  • Product Model: Alpha EVO Ultra
  • Motor Type: Ultra-Low Inertia Motor
  • Maximum Torque: 28 Nm
  • Encoder Resolution: 21-bit
  • Dimensions: 359 × 130 × 110 mm
  • Net Weight: 11 kg
  • Power Input: AC 100–240V 50/60Hz 7.0A / AC 200–240V 50/60Hz 4.0A (CE) / AC 120V 60Hz 7.0A (UL)
  • Power Output: DC 48V 11.5A Max (550W)
  • Control Frequency: 20KHz
  • Processor Frequency: 180MHz
  • Wireless Module: Bluetooth 2.4 GHz (2402–2480 MHz)
  • Signal Connection: CAN FD / CAN / USB
  • Mounting Holes: M6x10 threaded holes
  • Material: ABS / Aluminum Alloy
  • Optional Mounts: Side Mount Bracket (MB-S), Front Mount Bracket (MB-F)

What’s included?

  • Alpha EVO Ultra 28Nm Wheelbase
  • Installation Kit (M6-10 screws, M6-16 screws, 4mm Allen key)
  • Kill Switch with installation kit
  • Cable Kit (Power Cable, USB A–B Cable 2m, USB-C Cable 2m, RJ45–RJ11 Cable 2m)
  • Power Supply Unit

Optional Accessories

  • MagicDash 4
  • Multifunctional Desk Fixture (T-LOC)
  • Mounting Brackets (MB-A)
  • Side Mount Bracket (MB-S)
  • Front Mount Bracket (MB-F)
  • SIMAGIC Quick Release (QR50 / QR70)
  • SIMAGIC QR Adapter (QR-A)

*Specifications subject to change without notice.
